FLOOD LIGHTING

J-3007

FEATURES AND MATERIALS

1. The housing (heat sink)is made of ADC12 aluminum for high thermal conductivity.
2. The housing surface is treated with Akzo Nobel powder coating to provide long-term corrosion protection.
3. After powder coating,the inner surface of the heat sink is CNC-machined to ensure a precise fit with the aluminum PCB,enabling rapid heat transfer from the LED chips and maintaining the LED junction temperature(TJ)within a safe range for long LED lifespan.
4. The lamp features a tempered glass and PC lens.
5. All exposed screws are made of 304 stainless steel with strong corrosion resistance.
6. All materials are CE and RoHS compliant.

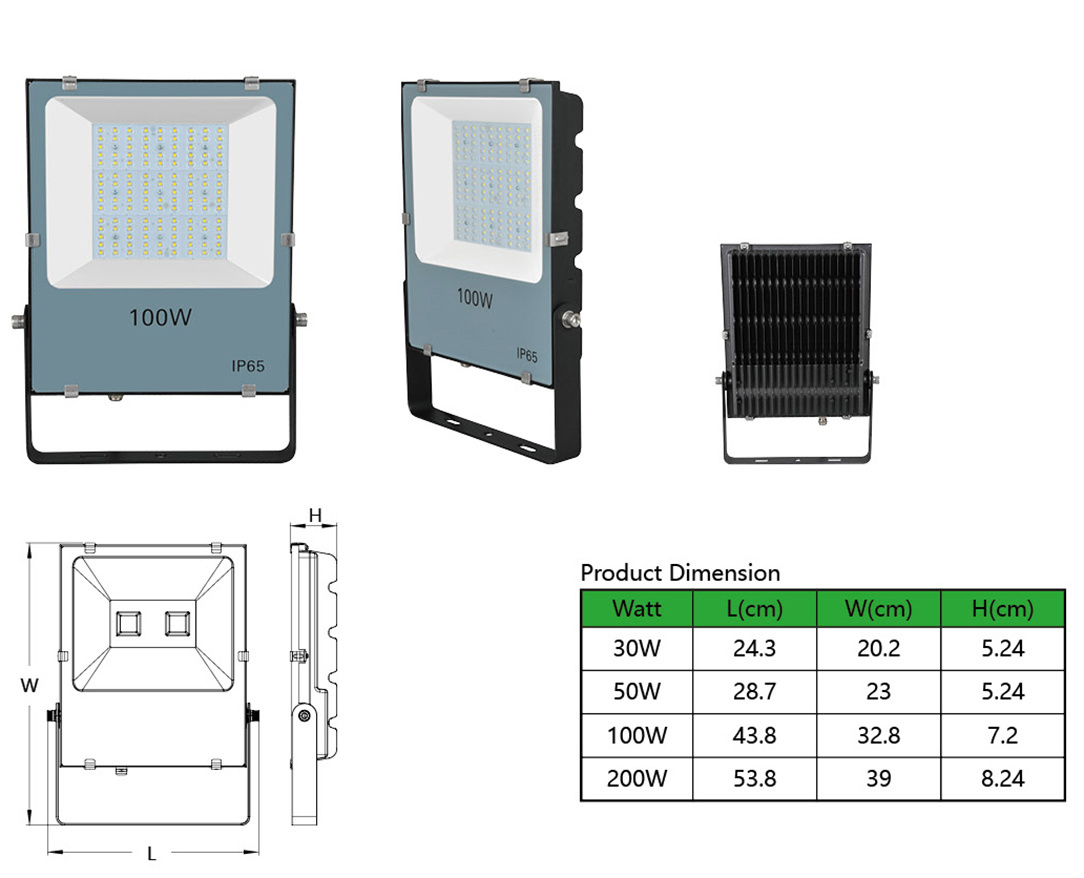

PRODUCT DIMENSION DRAWING


50W/100w	150W/200W	300W	400W/500W

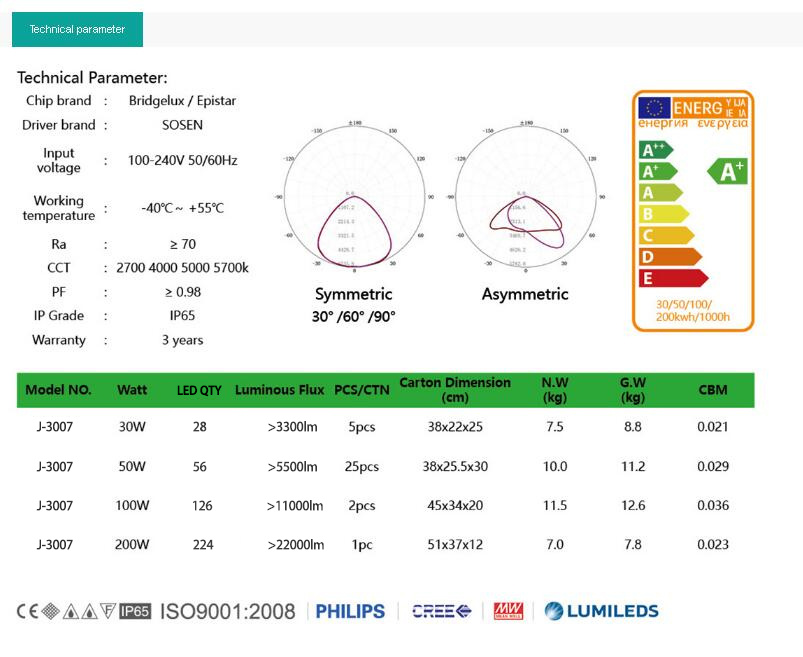

PRODUCT SPECIFICATIONS

Nominal Power：50W 100W 150W 200W 300W 400W 500W
Input Voltage：100-240VAC 50 / 60Hz

CCT：3000K / 4000K / 5000K / 5700K
CRI：>70Ra / 80Ra
Efficacy：130-140lm / W
LED Brand：Lumileds / CREE / 3030 / 5050
Driver Brand：Done / Sosen
Function Selection：0-10V(Dimming)
Operating Temperature：-30℃ to +50℃

IP Grade：IP66
Anti-Vibration Grade：5G
Warranty：>5 years (under normal circumstances)

BEAM ANGLE ：15°30°60°90°ASYMMETRIC

SPECIFICATION TABLE

MODEL NO.	50W	100w	150W	200W	300W	400w	500W
LUMINOUS FLUX	7000lm	14000lm	21000lm	28000lm	42000lm	56000lm	70000lm
PCS/CTN	5pcs	5pcs	2pcs	2pc	1pcs	1pcs	1pc
PACKING(MM)	380×255×300	380×255×300	450x340×200	450x340×200	550x400x120	700x520×126	700×520×126
N.W(KG)	10.0	10.0	11.5	11.5	7.0	12.0	12.0
G.W(KG)	11.2	11.2	12.6	12.6	7.8	13.4	13.4
VOLUME(M³)	0.029	0.029	0.036	0.036	0.026	0.045	0.045

J-3003AC

J-3060
