Ningbo Huashi opto electronic Technology Co.,Ltd.

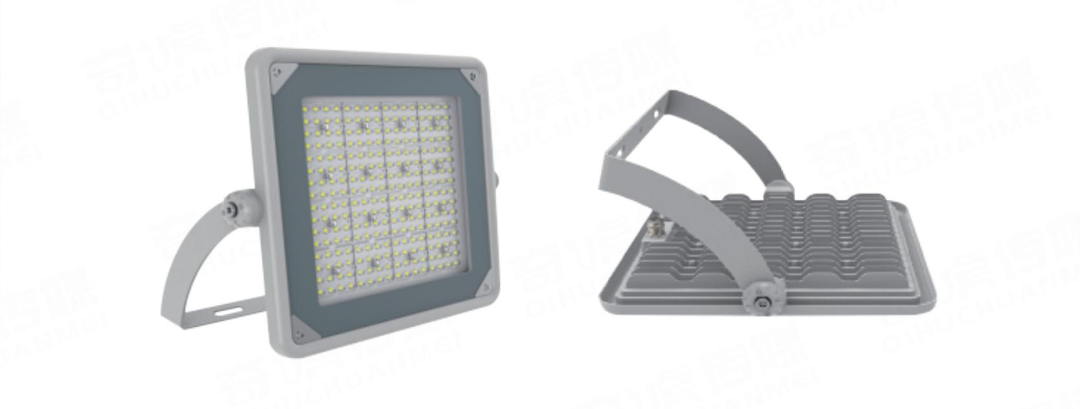

FLOOD LIGHTING

J-3003AC

J-3003AC
J-3003AC

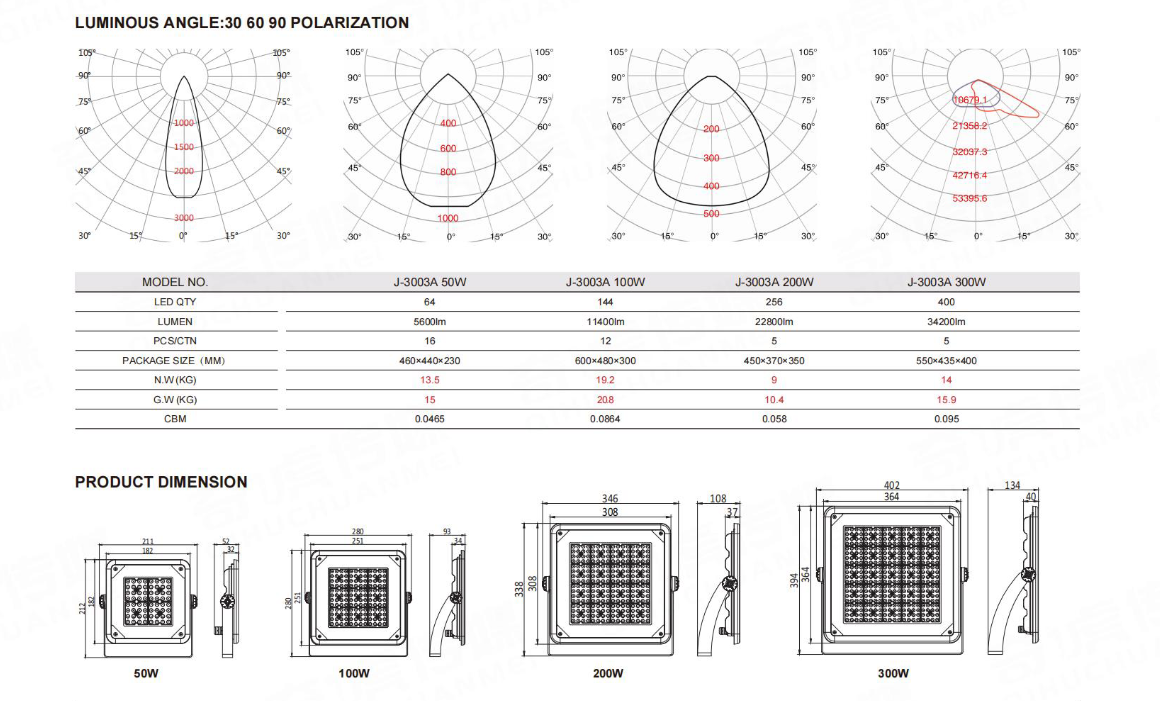

PRODUCT DIMENSION DRAWING

















PRODUCT SPECIFICATIONS





Nominal Power：50W  100W  200W  300W
Input Voltage：200-254VAC 50 / 60Hz
CCT：3000K / 4000K / 5000K / 5700K
CRI：>70Ra / 80Ra
Efficacy：110-120lm / W
LED Brand：Hongli 2835
Surge Protection：10KV
Operating Temperature：-30℃ to + 50℃
IP Grade：IP66
IK：09
Warranty：>3 years (under normal circumstances)











BEAM ANGLE：30° 60° 90° POLARIZATION







SPECIFICATION TABLE





MODEL NO.

50W

100w

200w

300W

LED QTY

64

144

256

400

LUMINOUS FLUX

5600lm

11400lm

22800lm

34200lm

PCS/CTN

16

12

5

5

PACKING(MM)

460×440×230

600×480×300

450×370×350

550×435×400

N.W(KG)

15

20.1

14.7

20.4

G.W(KG)

16.5

21.6

16.2

21.9

VOLUME(M³)

0.0465

0.0864

0.058

0.095
