FLOOD LIGHTING

J-3060

FEATURES AND MATERIALS

1. The housing(heat sink)is made of ADC12 aluminum for high thermal conductivity.
2. The housing surface is treated with Akzo Nobel powder coating to provide long-term corrosion protection.
3. After powder coating,the inner surface of the heat sink is CNC-machined to ensure a precise fit with the aluminum PCB,enabling rapid heat transfer from the LED chips and maintaining the LED junction temperature(TJ)within a safe range for long LED lifespan.
4. The lamp features a tempered glass and PC lens design with an independent driver gearbox,ensuring reliable IP protection.
5. All exposed screws are made of 304 stainless steel with strong corrosion resistance.
6. All materials are CE and RoHS compliant.

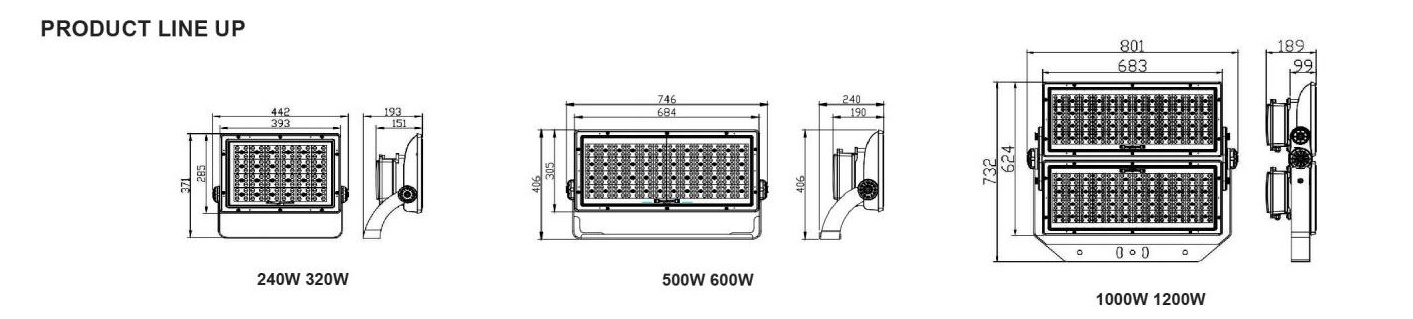

PRODUCT DIMENSION DRAWING

PRODUCT SPECIFICATIONS

Power：240 / 320 / 500 / 600 / 700 / 860 / 1000 / 1200 / 1400 / 1720W

Input Voltage：100-240VAC 50 / 60Hz

CCT：3000K / 4000K / 5000K / 5700K

CRl：>70Ra / 80Ra

LPW：120-150lm / W

LED Brand：Lumileds / CREE / OSRAM / 3737 / 5050

Driver Brand：Inventronics / Sosen / Moso

Function：0-10V Dimming / DALl-2 / Zhaga D4i

Surge Protection：20KV

Operation Temperature：-30℃ to + 50℃

IP Grade：1P66

Anti-vibration Grade：5G

Warranty：>5 years use under normal condition

BEAM ANGLE：20° 30° 60° POLARIZATION

SPECIFICATION TABLE

MODEL NO.	LUMINOUS FLUX	ENVIRONMENT+50℃ LED TJ	ENVIRONMENT+50℃ DRIVER TC	POWER FACTOR	PACKING(MM)	NET WEIGHT(KG)	GROSS WEIGHT(KG)	VOLUME(M³)
240W	32000lm	<93℃	<73℃	0.98	458x338x225	7.7	8.3	0.035
320W	44000lm	<97℃	<76℃	0.98	458x338x225	8.2	8.8	0.035
500W	70000lm	<89℃	<78℃	0.99	805x370x260	19.1	20.4	0.077
600W	80000lm	<94℃	<83℃	0.99	805x370x260	19.1	20.4	0.077
700W	105000lm	<92℃	<77℃	0.99	855x445x265	23.8	25.3	0.1
860W	129000lm	<98℃	<83℃	0.99	855x445x265	23.8	25.3	0.1
1000W	145000lm	<89℃	<78℃	0.99	870×840×250	39.2	44.5	0.182
1200W	168000lm	<94℃	<83℃	0.99	870×840×250	39.2	44.5	0.182
1400W	203000lm	<92℃	<77℃	0.99	958×882×260	49.75	55.1	0.22
1720W	249000lm	<98℃	<83℃	0.99	958×882×260	49.75	55.1	0.22
