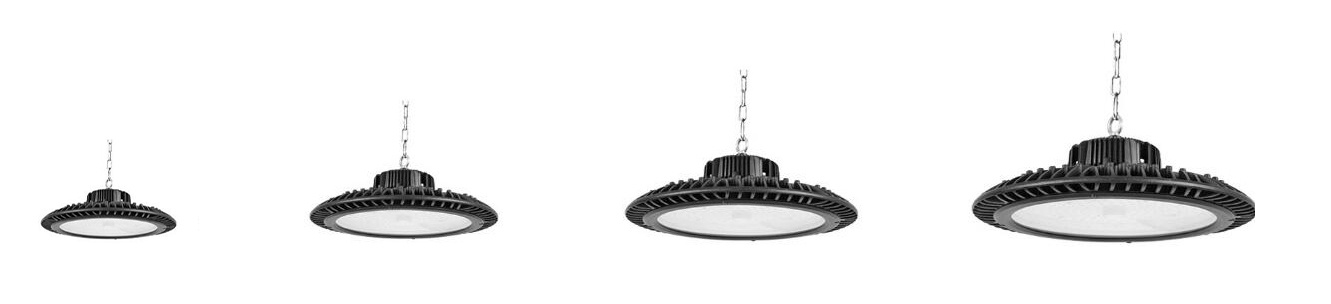

HIGHBAY LIGHT

J-7056

FEATURES AND MATERIALS

1. The housing(heat sink)is made of ADC12 aluminum for high thermal conductivity
2. The housing surface is treated with Akzo Nobel powder coating to provide long-term corrosion protection.
3. After powder coating,the inner surface of the heat sink is CNC-machined to ensure a precise fit with the aluminum PCB,enabling rapid heat transfer from the LED chips and maintaining the LED junction temperature(TJ)within a safe range for long LED lifespan.
4. The luminaire is fitted with tempered glass featuring a light transmittance greater than 95%.
5. All exposed screws are made of 304 stainless steel,and the retaining ring is blue zinc plated to enhance corrosion resistance.

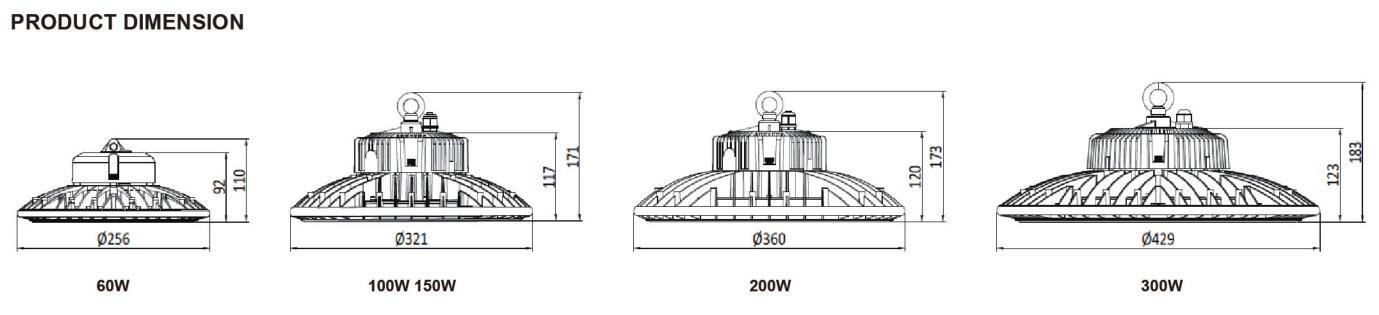

PRODUCT DIMENSION DRAWING

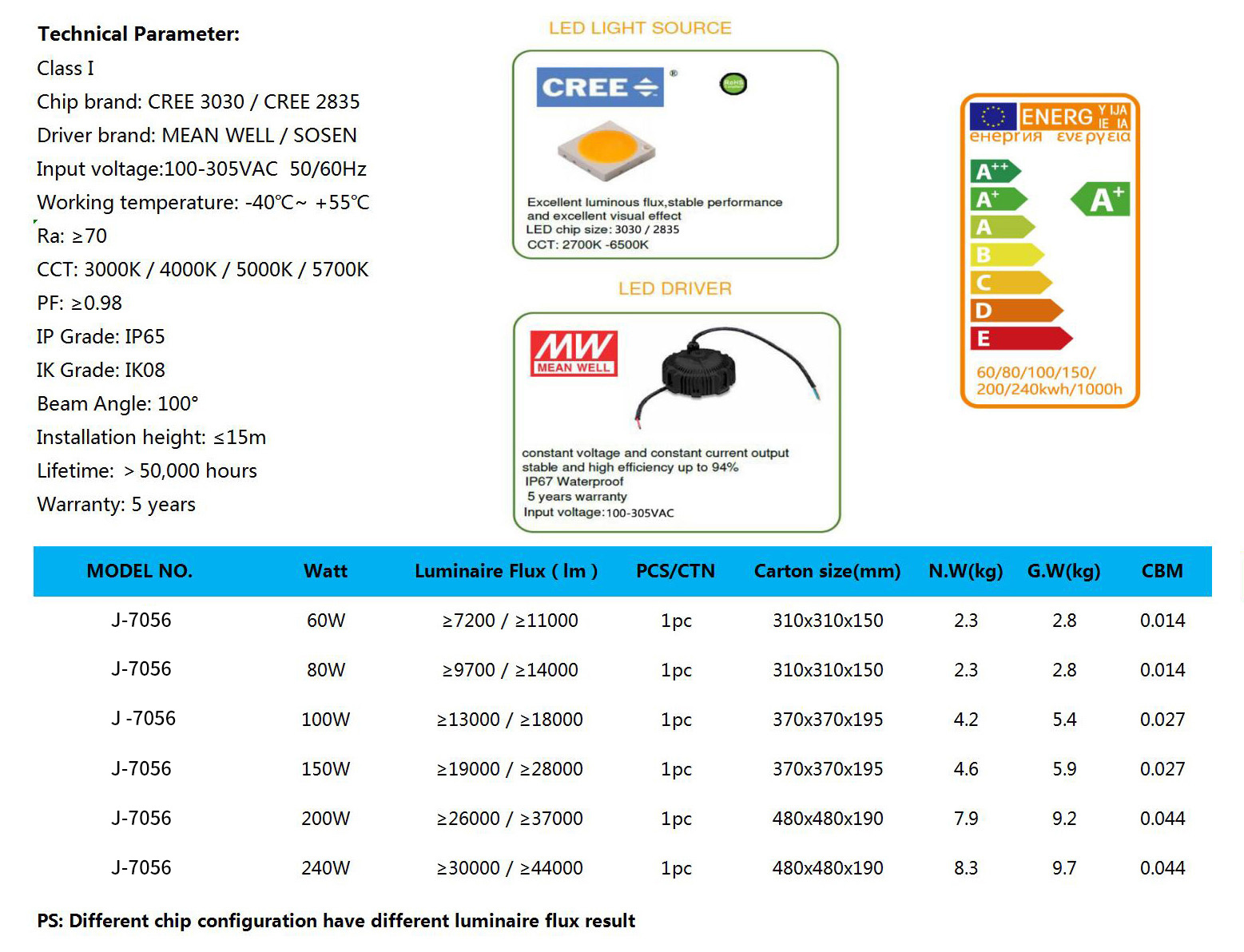

PRODUCT SPECIFICATIONS

Nominal Power：60W 100W 150W 200W 300W
Input Voltage：100-240VAC 50 / 60Hz
CCT：3000K / 4000K / 5000K / 5700K
CRI：>70Ra / 80Ra
Efficacy：150-180lm / W
LED Brand：Lumileds / HONGLI / 2835 / 3030

Driver Brand：Meanwell / Sosen / PHILIPS
Function Selection：0-10V Dimming / DALI-2
Power Factor：>0.95
Operating Temperature：-30℃ to + 50℃

Grade：IP66
Warranty：>5 years (under normal circumstances)

BEAM ANGLE

SPECIFICATION TABLE

MODEL NO.	60W	100W	150W	200w	300W
LUMINOUS FLUX	10200lm	17000lm	25500lm	34000lm	51000lm
PACKING(MM)	310×310×175	370×370×205	370×370×205	410×410×205	480×480×205
NET WEIGHT(KG)	2.05	3.6	3.95	5.1	6.55
GROSS WEIGHT(KG)	2.8	4.75	5.1	6.25	8.15
VOLUME(M³)	0.017	0.028	0.028	0.034	0.047
