STREET LIGHT

J-6031

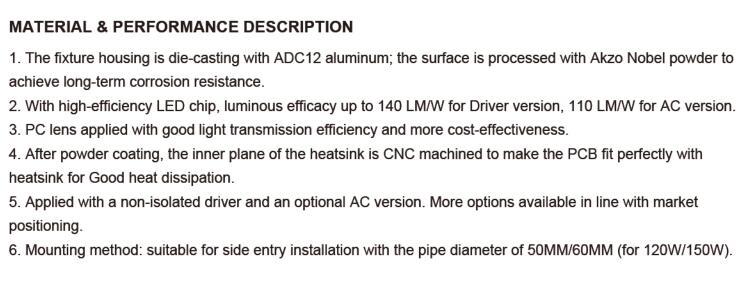

FEATURES AND MATERIALS

1. The fixture housing is die-casting with ADC12 aluminum;the surface is processed with Akzo Nobel powder to achieve long-term corrosion resistance.
2. With high-efficiency LED chip,luminous efficacy up to 140 LM/W for Driver version,110 LM/W for AC version.

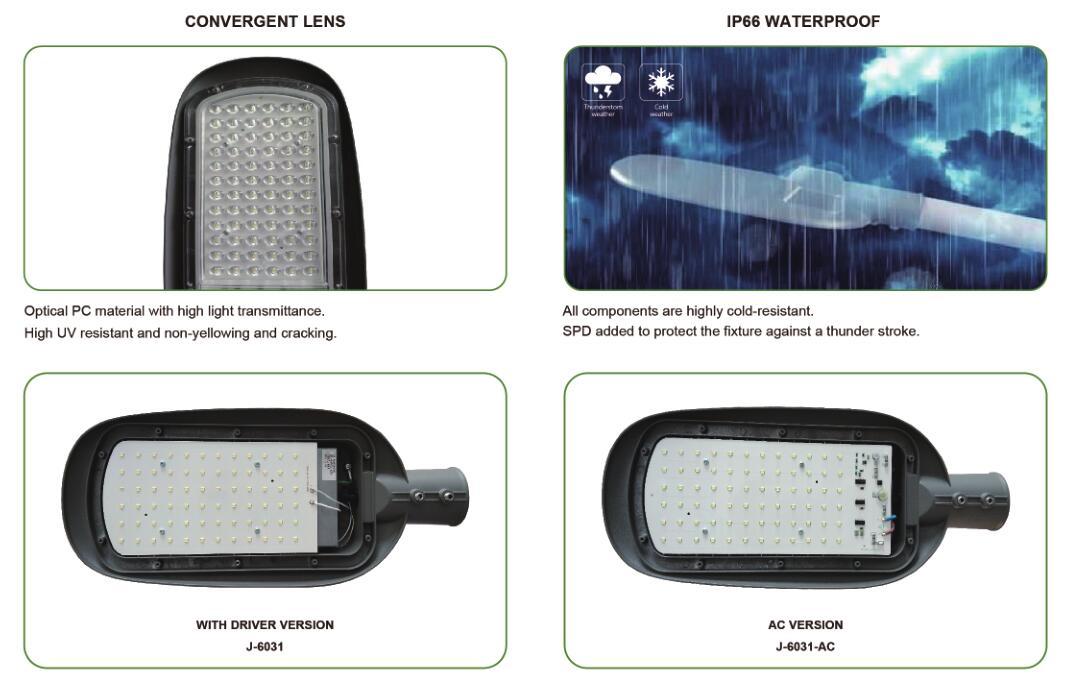

3. PC lens applied with good light transmission efficiency and more cost-effectiveness.
4. After powder coating,the inner plane of the heatsink is CNC machined to make the PCB fit perfectly with heatsink for Good heat dissipation.
5. Applied with a non-isolated driver and an optional AC version.More options available in line with market positioning.

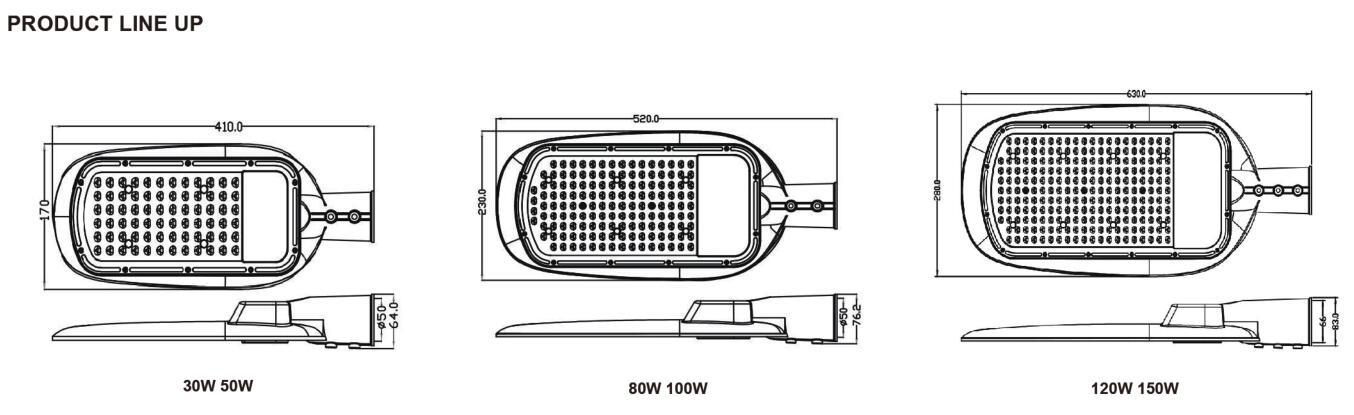

PRODUCT DIMENSION DRAWING

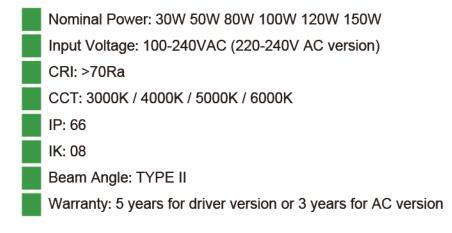

PRODUCT SPECIFICATIONS

Nominal Power：30W 50W 80W 100W 120W 150W
Input Voltage：200-240V 50 / 60Hz (220-240VAC version)
CRI：>70Ra
CCT：3000K / 4000K / 5000K / 6000K
IP：66
IK：08
Beam Angle：TYPE Ⅱ
Warranty：5 years for driver version or 3 years for AC version

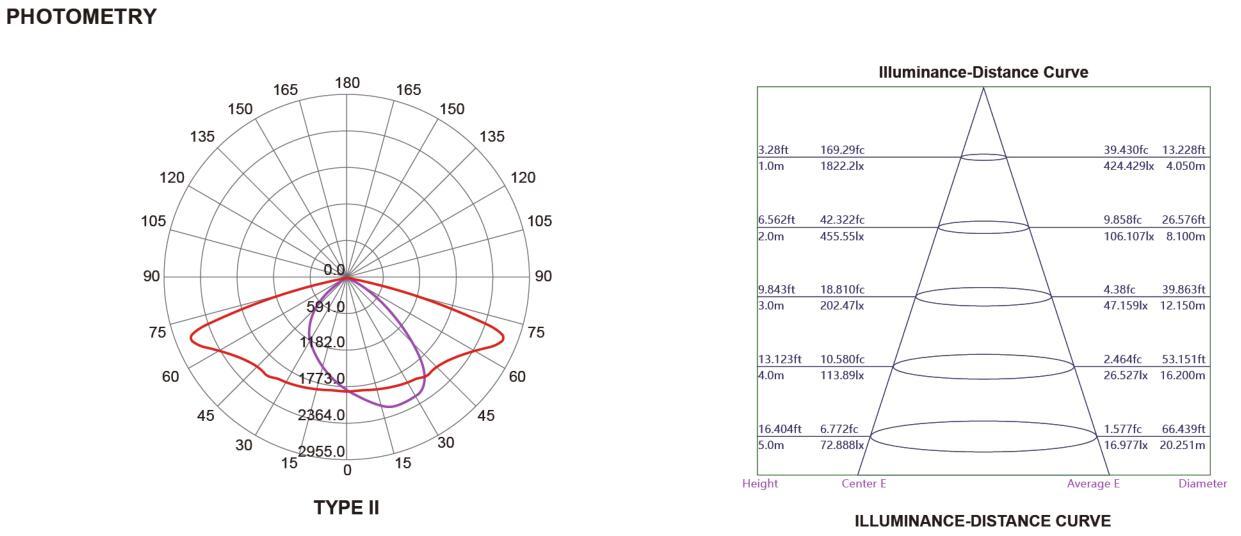

BEAM ANGLE

Illuminance-Distance Curve

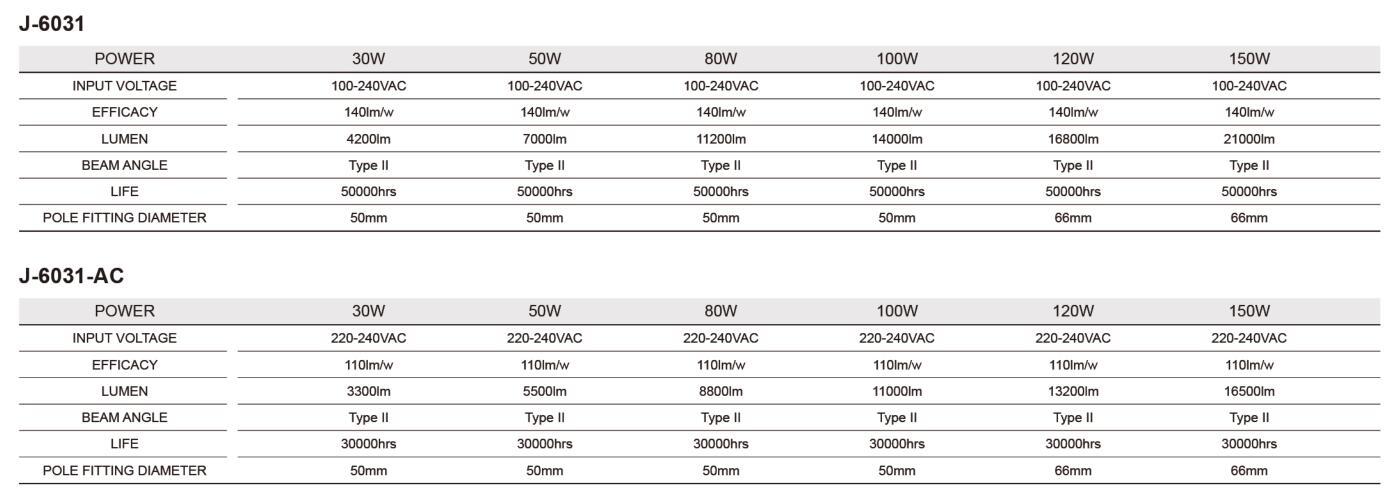

SPECIFICATION TABLE

POWER	30W	50W	80W	100w	120W	150W
INPUT VOLTAGE	200-240V	200-240V	200-240V	200-240V	200-240V	200-240V
EFFICACY	110lm/w	110lm/w	110lm/w	110lm/w	110lm/w	110lm/w
LUMINOUS FLUX	3300lm	5500lm	8800lm	11000lm	13200lm	16500lm
LIFE	30000hrs	30000hrs	30000hrs	30000hrs	30000hrs	30000hrs
POLE FITTING DIAMETER	50mm	50mm	60mm	60mm	60mm	60mm
PACKING(MM)	420×180x95	420×180x95	530×240×105	530×240x105	640×290×115	640×290×115
NET WEIGHT(KG)	1.1	1.1	1.6	1.6	2.3	2.3
GROSS WEIGHT(KG)	1.8	1.8	2.3	2.3	3.4	3.4
VOLUME(M³)	0.007	0.007	0.013	0.013	0.02	0.02
