HIGHBAY LIGHT

J-7050

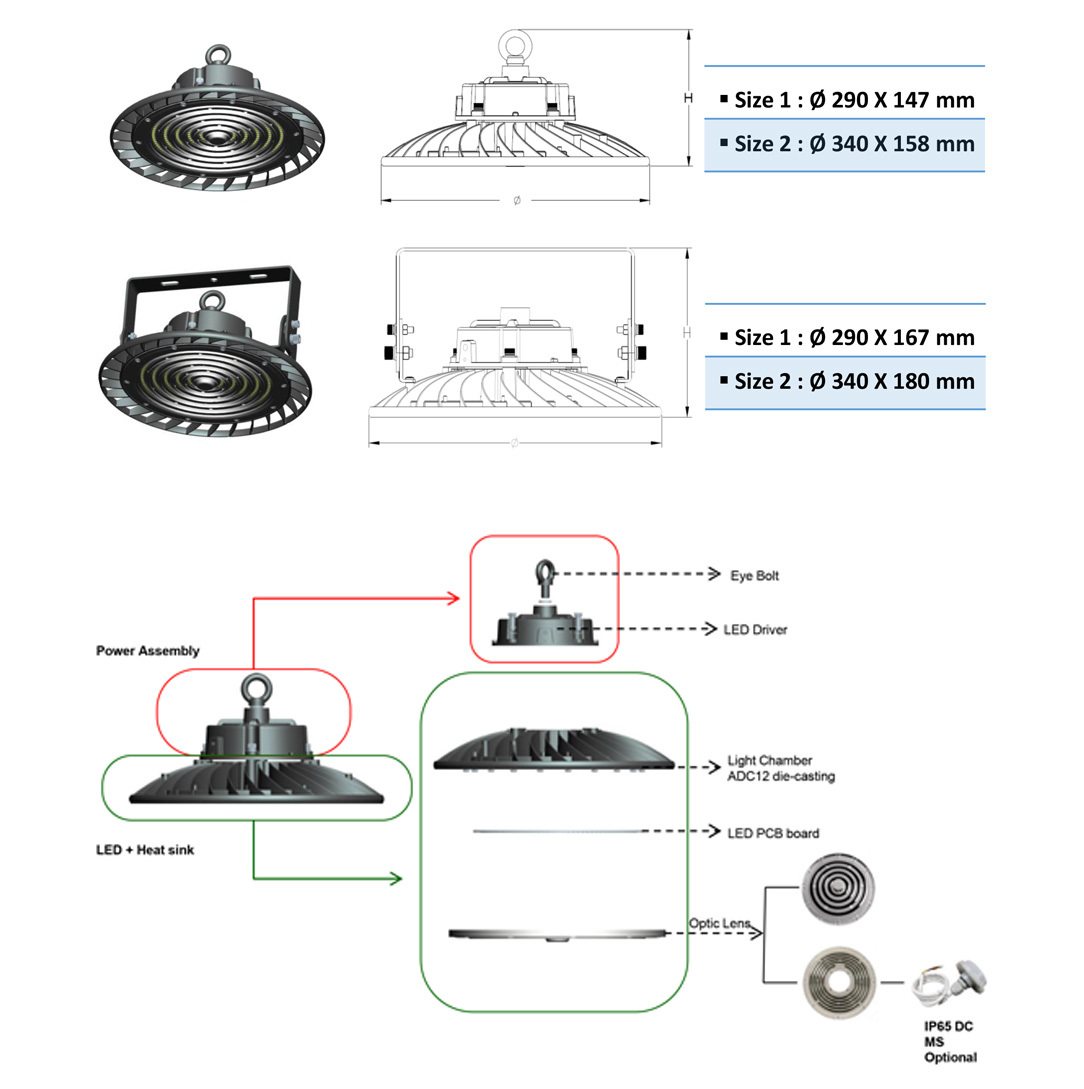

FEATURES AND MATERIALS

1. The housing(heat sink)is made of ADC12 aluminum for high thermal conductivity.
2. The housing surface is treated with Akzo Nobel powder coating to provide long-term corrosion protection.
3. After powder coating,the inner surface of the heat sink is CNC-machined to ensure a precise fit with the aluminum PCB,enabling rapid heat transfer from the LED chips and maintaining the LED junction temperature(TJ)within a safe range for long LED lifespan.
4. The lens is made of PC material with a light transmittance greater than 95%,and remains non- discoloring and non-aging for up to 5 years under normal operating conditions.
5. All exposed screws are made of 304 stainless steel,and the retaining ring is blue zinc plated to enhance corrosion resistance.

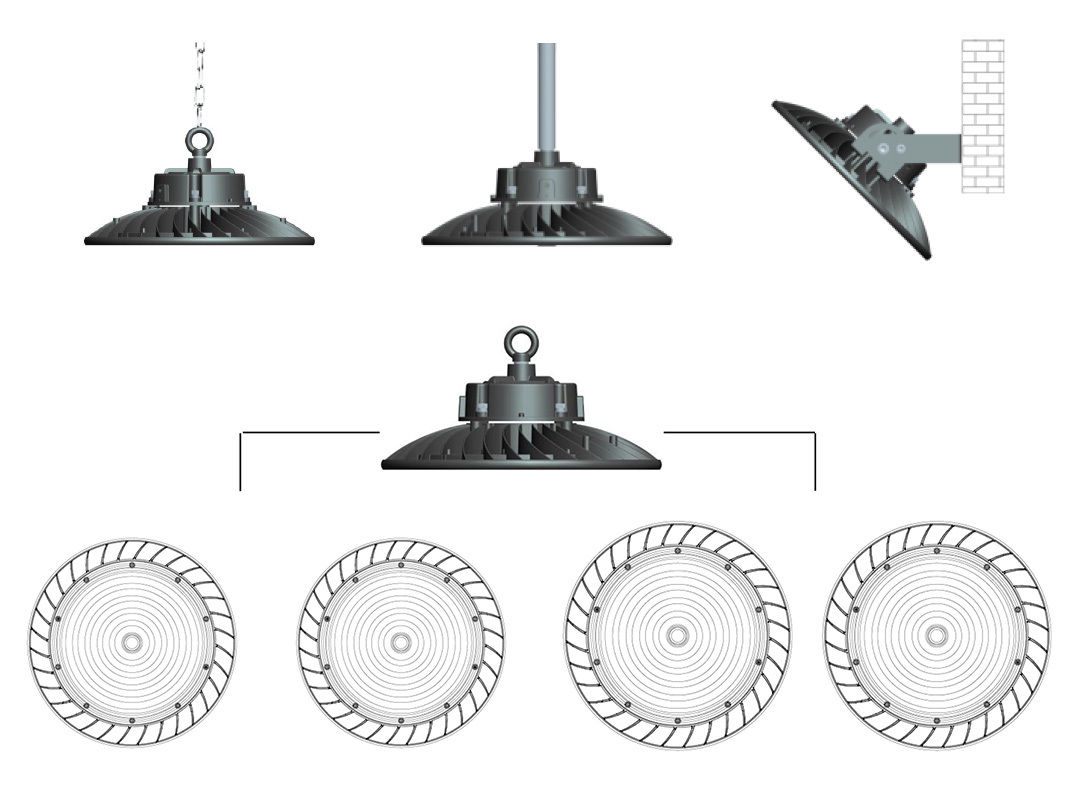

SUSPENDED INSTALLATION

FIXED INSTALLATION

PRODUCT SPECIFICATIONS

Nominal Power：80W 100W 150W 200W 240W
Input Voltage：100-240VAC 50 / 60Hz
CCT：3000K / 4000K / 5000K / 5700K
CRI：>70Ra / 80Ra
Efficacy：160-180lm / W
LED Brand：Lumileds / HONGLI / 2835 / 3030
Driver Brand：Sosen / Zhihe / Done
Function Selection：0-10V Dimming+12V
Auxiliary Source Power Factor：>0.95
Operating Temperature：-30℃ to + 50℃
IP Grade：IP66
Warranty：>5 years (under normal circumstance)

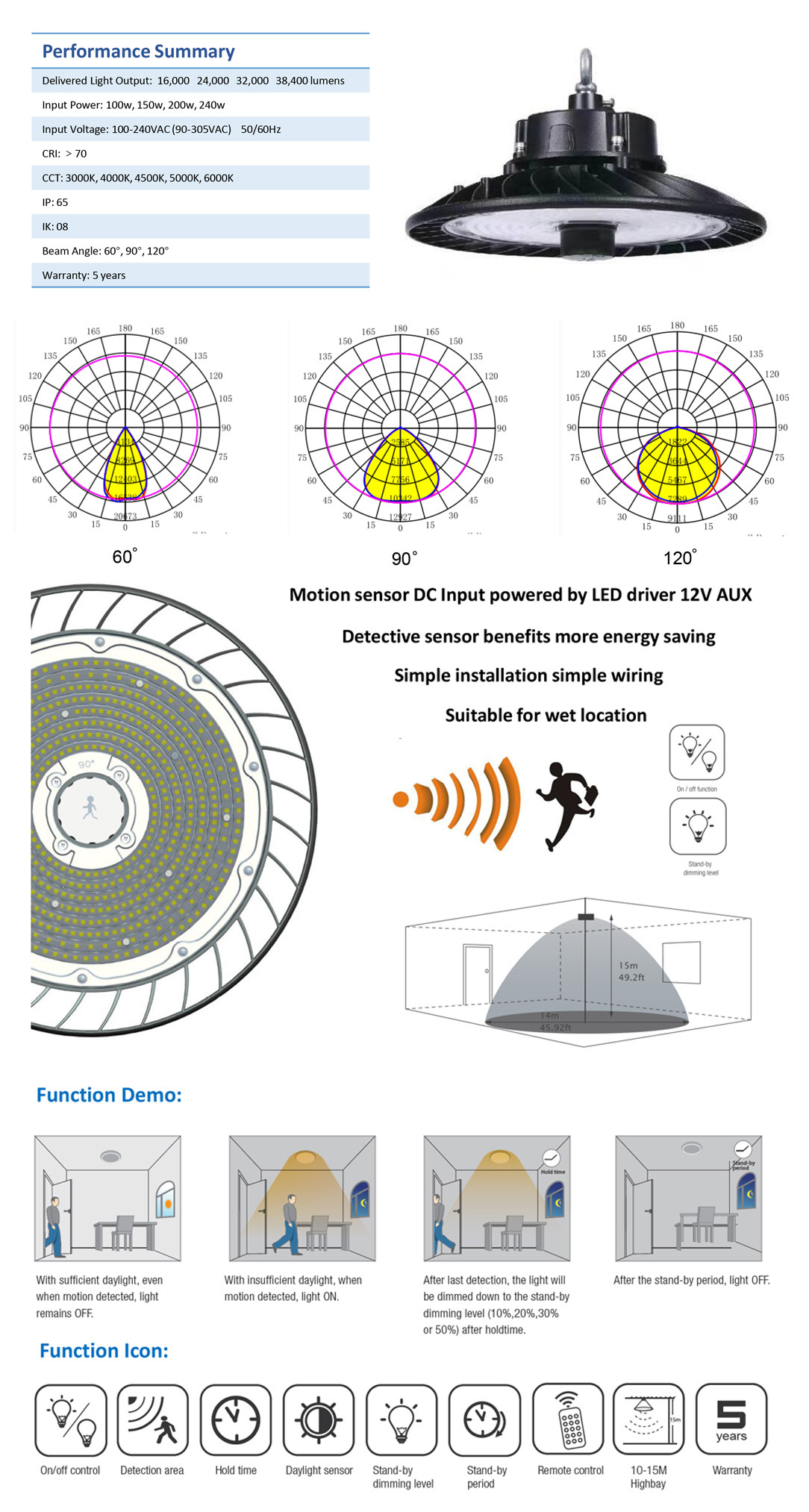

SMART LIGHTING SOLUTIONS

MW/PIR Smart(Local)
→Occupancy-based energy-saving projects

· Bluetooth single/small-group control
· ON with occupancy/DIM without/OFF vacant
· Offline operation,low cost system

Bluetooth Mesh Smart(Local+Cloud)
→Medium-large projects/Smart factories
Bluetooth Mesh distributed networking
· Individual/group/scene control
· Occupancy-linked,offline operation
· Cloud-based remote control &energy management

BEAM ANGLE：60° 90° 110°

SPECIFICATION TABLE

MODEL NO.	100W	150W	200W	240W
LUMINOUS FLUX	17000lm	25500lm	34000lm	41000lm
ENVIRONMENT+50℃ LED TJ	<81℃	<84℃	<84℃	<87℃
ENVIRONMENT+50℃ DRIVER TC	<68℃	<71℃	<77℃	<80℃
PACKING(MM)	330x330x180	330x330x180	410x410x195	410x410x195
NET WEIGHT(KG)	2.1	2.16	2.9	3.1
GROSS WEIGHT(KG)	3.0	3.06	4.0	4.2
VOLUME(M³)	0.02	0.02	0.033	0.033

none

J-7052
