Ningbo Huashi opto electronic Technology Co.,Ltd.

STREET LIGHT

J-6022

J-6022

FEATURES AND MATERIALS





1. The housing(heat sink)is made of ADC12 aluminum for high thermal conductivity.
2. The housing surface is treated with Akzo Nobel powder coating to provide long-term corrosion protection.
3. After powder coating,the inner surface of the heat sink is CNC-machined to ensure a   precise fit with the COB,enabling rapid heat transfer from the LED chips and maintaining the LED junction temperature (TJ)within a safe range for long LED lifespan.
4. The fixture is designed with tempered glass lens.
5. All exposed screws are made of 304 stainless steel with strong corrosion resistance.
6. All materials are CE,ROHS compliant.

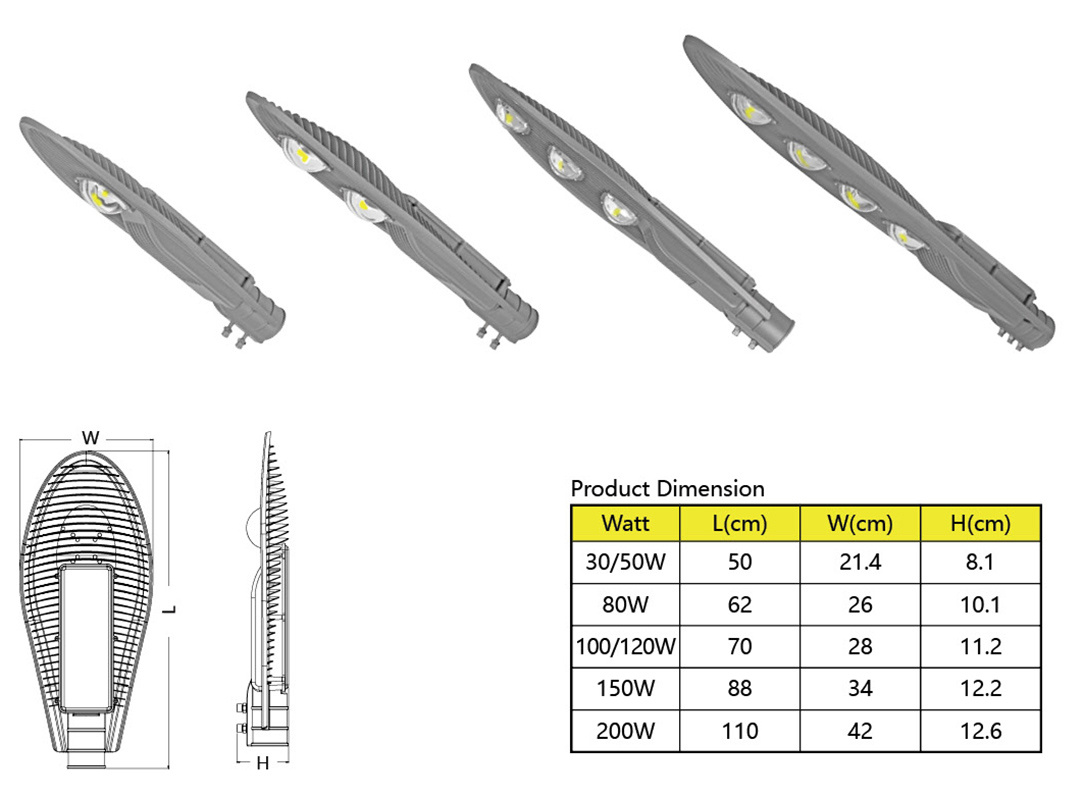

PRODUCT DIMENSION DRAWING



Watt

L(mm)

W(mm)

H(mm)

30/50W

500

214

81

80W

620

260

101

100/120W

700

280

112

150W

880

340

122

200w

1100

420

126

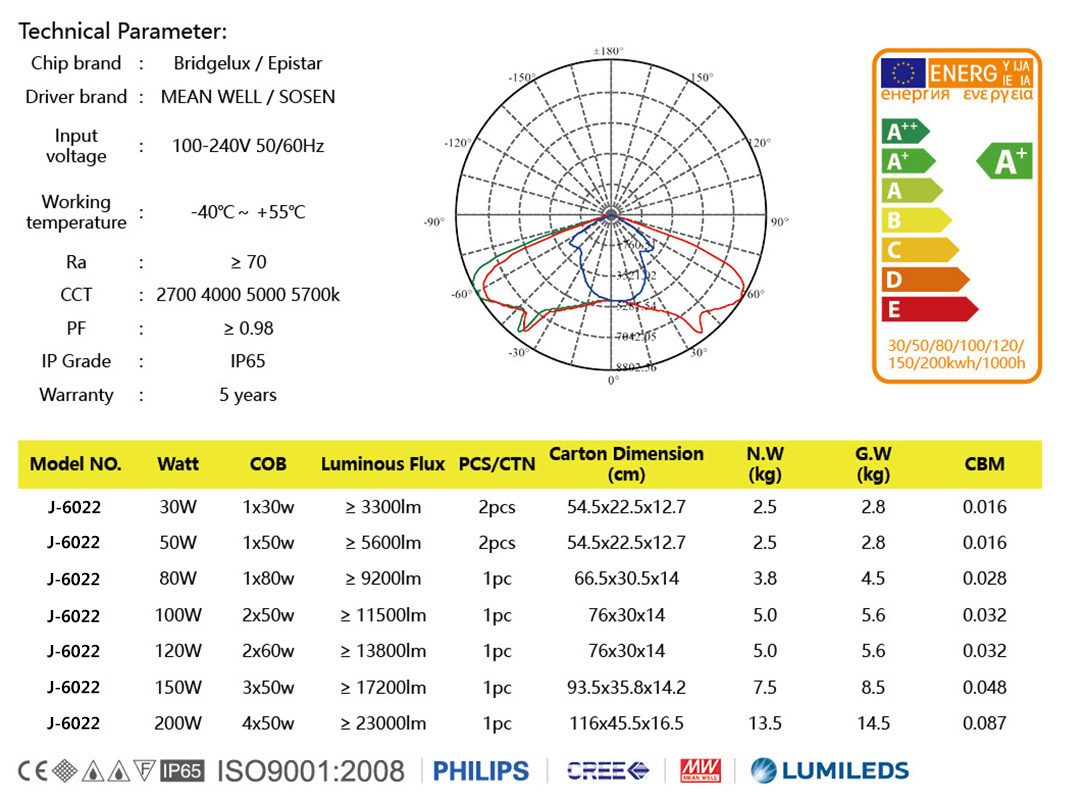

PRODUCT SPECIFICATIONS





Chip brand：Bridgelux / Epistar
Driver Brand：Meanwell / Sosen

Input voltage：100-240V 50 / 60Hz
Working Temperature：-40℃ ~ + 55℃
Ra：≥70
CCT：2700K / 4000K / 5000K / 5700K

PF：≥0.98
IP Grade：IP66
Warranty：5  years



















BEAM ANGLE







SPECIFICATION TABLE



MODEL NO.

30W

50W

80W

100W

120W

150W

200W

COB

1×30w

1x50w

1×80w

2x50w

2x60w

3x50w

4x50w

LUMINOUS FLUX

≥3300lm

≥5600lm

≥9200lm

≥11500lm

≥13800lm

≥17200lm

≥23000lm

PCS/CTN

1pc

1pc

1pc

1pc

1pc

1pc

1pc

PACKING(MM)

545×225×142

545×225×142

665x305×155

760x300x155

760x300x155

935x358x157

1160×455x180

NET WEIGHT(KG)

2.5

2.5

3.8

5.0

5.0

7.5

13.5

GROSS WEIGHT(KG)

2.8

2.8

45

5.6

5.6

8.5

14.5

VOLUME(M³)

0.017

0.017

0.031

0.035

0.035

0.052

0.95
