STREET LIGHT

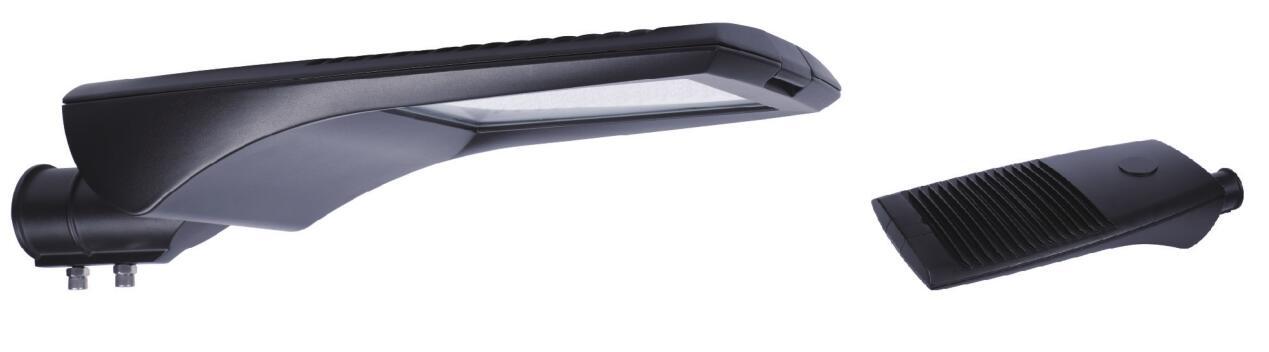

J-6020

FEATURES AND MATERIALS

1. The housing(heat sink)is made of ADC12 aluminum for high thermal conductivity.
2. The housing surface is treated with Akzo Nobel powder coating to provide long-term corrosion protection.
3. After powder coating,the inner surface of the heat sink is CNC-machined to ensure a precise fit with the aluminum PCB, enabling rapid heat transfer from the LED chips and maintaining the LED junction temperature(TJ)within a safe range for long LED lifespan.
4. The fixture is designed with tempered glass+PC lens,and features an independent gear box with excellent IP protection.
5. The gear box features a snap-on design and the spigot can be adjusted from 0°to 15°forward and backward.
6. All exposed screws are made of 304 stainless steel with strong corrosion resistance.
7. All materials are CE and RoHS compliant.

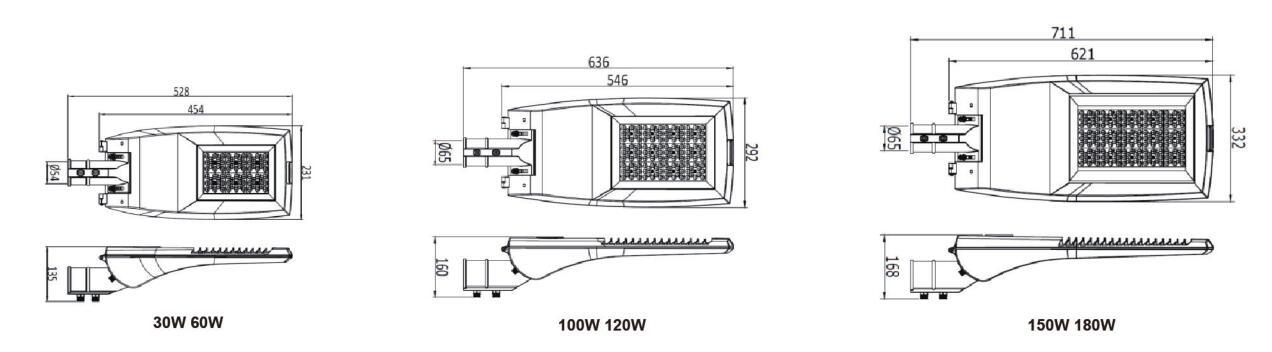

PRODUCT DIMENSION DRAWING

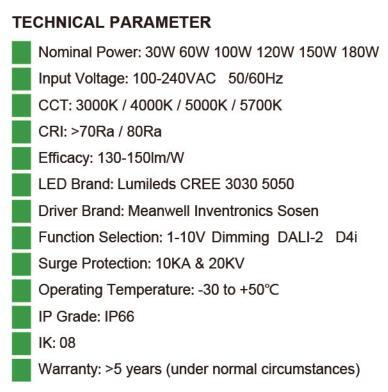

PRODUCT SPECIFICATIONS

Nominal Power：30W 60W 100W 120W 150W 180W

Input Voltage：100-240VAC 50 / 60Hz
CCT：3000K / 4000K / 5000K / 5700K

CRI：>70Ra / 80Ra
Efficacy：130-150lm / W
LED Brand：Lumileds / CREE / 3030 / 5050
Driver Brand：Meanwell / Inventronics / Sosen

Function Selection：0-10V Dimming/DALI-2

Surge Protection：20KV
Operating Temperature：-30℃ to + 50℃

IP Grade：IP66
IK：09
Warranty：>5 years (under normal circumstances)

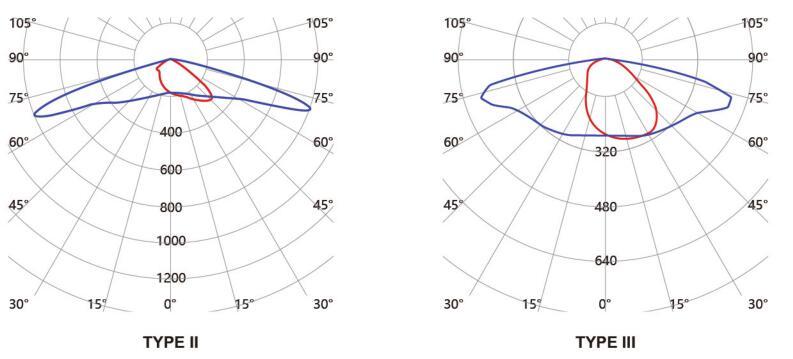

BEAM ANGLE

Spigot Adjustment Angle

SPECIFICATION TABLE

MODEL NO.	30W	60W	100W	120W	150W	180W
LUMINOUS FLUX	4200lm	8400lm	14000lm	16800lm	21000lm	25000lm
ENVIRONMENT+50℃ LED TJ	<67℃	<70℃	<73℃	<76℃	<77℃	<80℃
ENVIRONMENT+50℃ DRIVER TC	<63℃	<66℃	<68℃	<71℃	<67℃	<70℃
PACKING(MM)	575×280×190	575×280x190	680×345×215	680×345x215	765x385×230	765x385×230
NET WEIGHT(KG)	3.86	3.92	6.6	6.7	8.9	8.92
GROSS WEIGHT(KG)	4.44	4.5	7.24	7.28	9.22	9.28
VOLUME(M³)	0.031	0.031	0.05	0.05	0.068	0.068
